DIAMOND ULTRAHARD CUTTING & GRINDING DISC
K-S50
With Main & Aux Grinding Wheel Double Work Station5 Axis LinkageComplex Surface GrindingK-S50 is a standard product independently developed by our company for customers, using robot-like architecture, 9-axis and 5-axis linkage, suitable for 0~50Kg(including tooling) small size casting products grinding, cutting. The equipment takes into account both flexibility and rigidity, can flexibly polish all kinds of complex shapes of castings, standard with double stations, can simultaneously polish different products, saving loading and unloading cycle, convenient automatic line formation.
|
SPECIFICATION DRMLS/DRMLSX- Outer Diameter* Thickness*Bore Diameter (mm)
|
||
|---|---|---|
|
Model Ⅰ
|
Model ⅠⅠ
|
|
|
Model ⅠⅠⅠ
|
Model Ⅳ
|
|
|

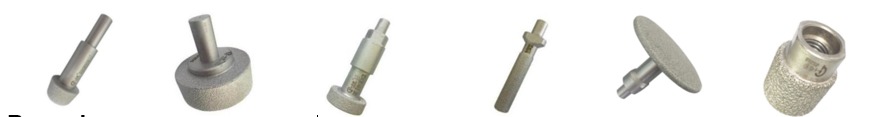

Specification【DRMTⅠ/Ⅱ/Ⅲ/Ⅳ-D1*L1MD2*(L-L1)(mm)】
|
Remarks
|
||
|---|---|---|---|
|
DRMTⅠ/Ⅱ/Ⅲ-07*20M06*40
|
DRMTⅠ/Ⅱ/Ⅲ-09*20M06*40
|
Customization accepted as per request regarding Diamond mesh No. /length and external diameter≦20mm.
|
|
|
DRMTⅠ/Ⅱ/Ⅲ-12*36M06*30
|
DRMTⅠ/Ⅱ/Ⅲ-15*36M06*30
|
||
|
DRMTⅠ/Ⅱ/Ⅲ-17*36M06*30
|
DRMT Ⅳ-17*35M06*33
|
||
|
DRMTⅠ/Ⅱ/Ⅲ-19*36M06*30
|
DRMT Ⅳ-19*35M06*33
|
||
|
AIR DIE GRINDER (ADGⅠ-220)
|
||
|---|---|---|
|
1. Install end grinds of 10mm or 6mm shank diameter.
2. Maximum speed: 22,000 RPM 3. Air pressure: 0.7-0.8 MPa 4. A 3HP power air compressor for only one air die grinder. 5. A screw air compressor for multiple air die grinders at the same time.
|
||
|
FOR AUTOMATIC EQUIPMENT
|
||
|---|---|---|
|
Remarks: Customized products can be designed and manufactured for automatic grinding equipment as per request from the customer.
|
||
|

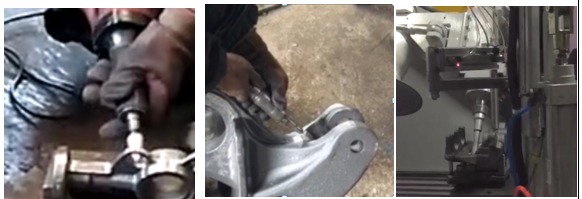

Application: Manually & automatically grind the curved surface, groove and bore of cast iron.
|
||
