DIAMOND ULTRAHARD ONE SIDE CONICAL FINE GRINDING WHEEL

DIAMOND ULTRAHARD ONE SIDE CONICAL FINE GRINDING WHEEL

K-S50

With Main & Aux Grinding Wheel Double Work Station5 Axis LinkageComplex Surface GrindingK-S50 is a standard product independently developed by our company for customers, using robot-like architecture, 9-axis and 5-axis linkage, suitable for 0~50Kg(including tooling) small size casting products grinding, cutting. The equipment takes into account both flexibility and rigidity, can flexibly polish all kinds of complex shapes of castings, standard with double stations, can simultaneously polish different products, saving loading and unloading cycle, convenient automatic line formation.

DIAMOND ULTRAHARD ONE SIDE CONICAL FINE GRINDING WHEEL

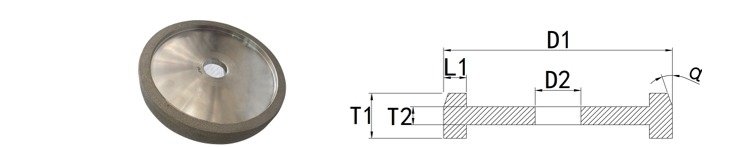

Specification【DRTMML D1*T1*D2-L1* α(°) MESH No.】
Remarks:
DRJMML 100*20*20-10*10° / 15° M/N
1. Outer Diameter:
100mm-150mm
2. Diamond Mesh No.:
M/N-140/170 J/K-80/100
DRJMML 125*20*32-10*10°/ 15° M/N
DRJMML 150*20*32-10*10°/ 15° M/N
