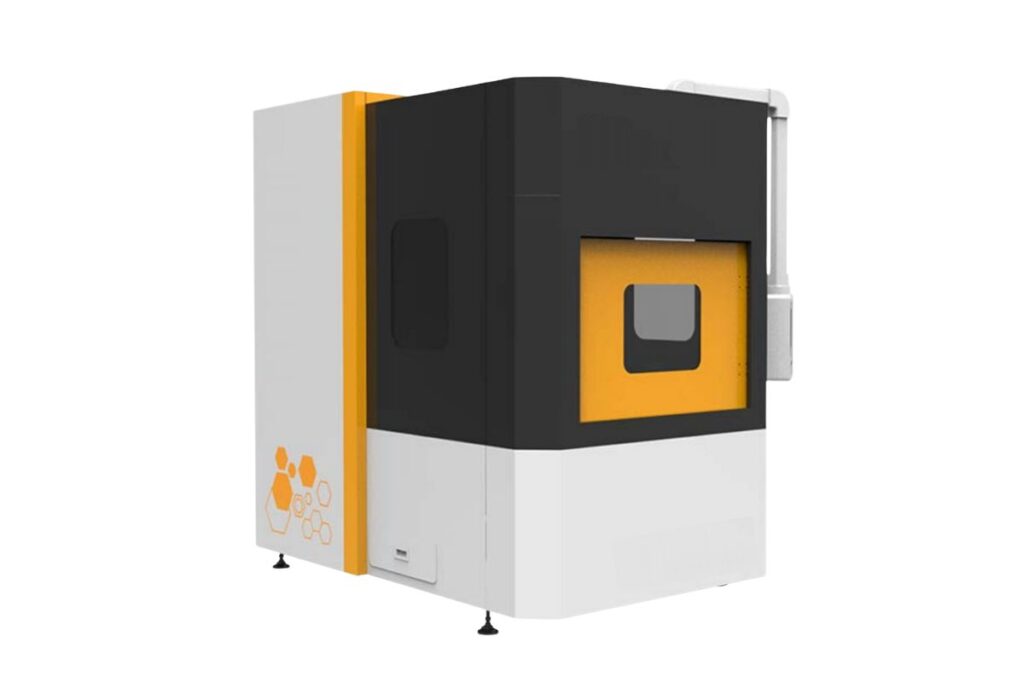

K-G800 Die Casting Aluminum Deburring Equipment
K-G800 Die Casting Aluminum Deburring Equipment
K-G800 special polishing robot is used for deburring, punching, and tapping of die cast aluminum and cast aluminum blanks, as well as secondary deburring of machined parts with a material hardness of HRC50 or less. It can polish products weighing up to 100kg (including tooling). Adopting a gantry+cradle style architecture, with 12 axes and 5 linkage, it features advanced design concepts, beautiful appearance, excellent overall
|
Model
|
K-G800
|
|---|---|
|
Machine size
|
2240mm*2054mm*3000m
|
|
Machine stroke
|
1040mm*650mm*650mm
|
|
Max processing size
|
800mm*500mm*400mm
|
|
Machine weight
|
6t
|
|
Max load bearing
|
100kg (including tooling)
|
|
Tool shaft number
|
6
|
|
NC number
|
12
|
|
Supply voltage
|
Ac380±10% 50Hz
|
|
Ambient temperature
|
-10-45℃
|
|
Total power
|
20kw
|
|
Rated power of rigid spindle
|
|
|
Maximum speed of rigid spindle
|
|
|
Maximum speed of rigid spindle
|
|
|
Maximum speed of flexible spindle
|
|
