K-MAC200
K-MAC200
Single Work Station Price Advantage Flexible Processing RangeK-MAC200 is specifically designed for high cost performance. The equipment is equipped with 3-axis, 4-axis, 5-axis versions of different specifications, suitable for castings with different shapes and complexity. High compatibility in applicable product weight, can be customized according to customer products, compatible with 0~220kg(including tooling) range of casting grinding and cutting.
|
Model
|
K-MAC200
|

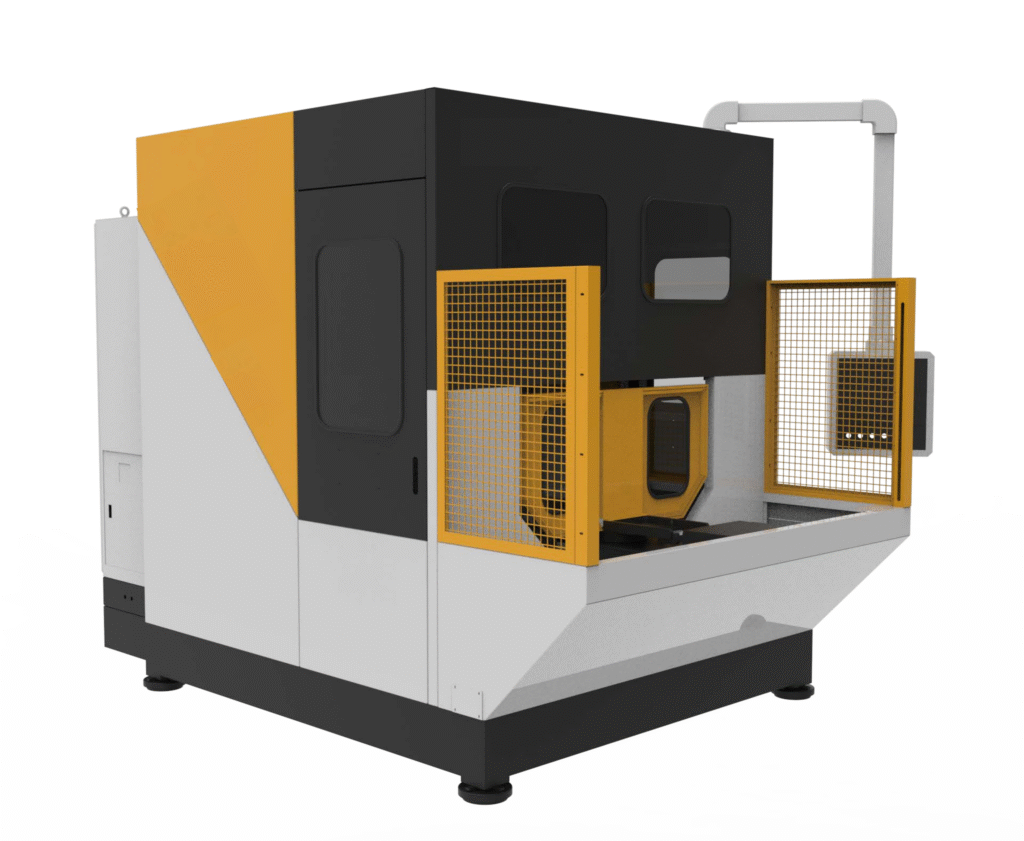

K-S50
|

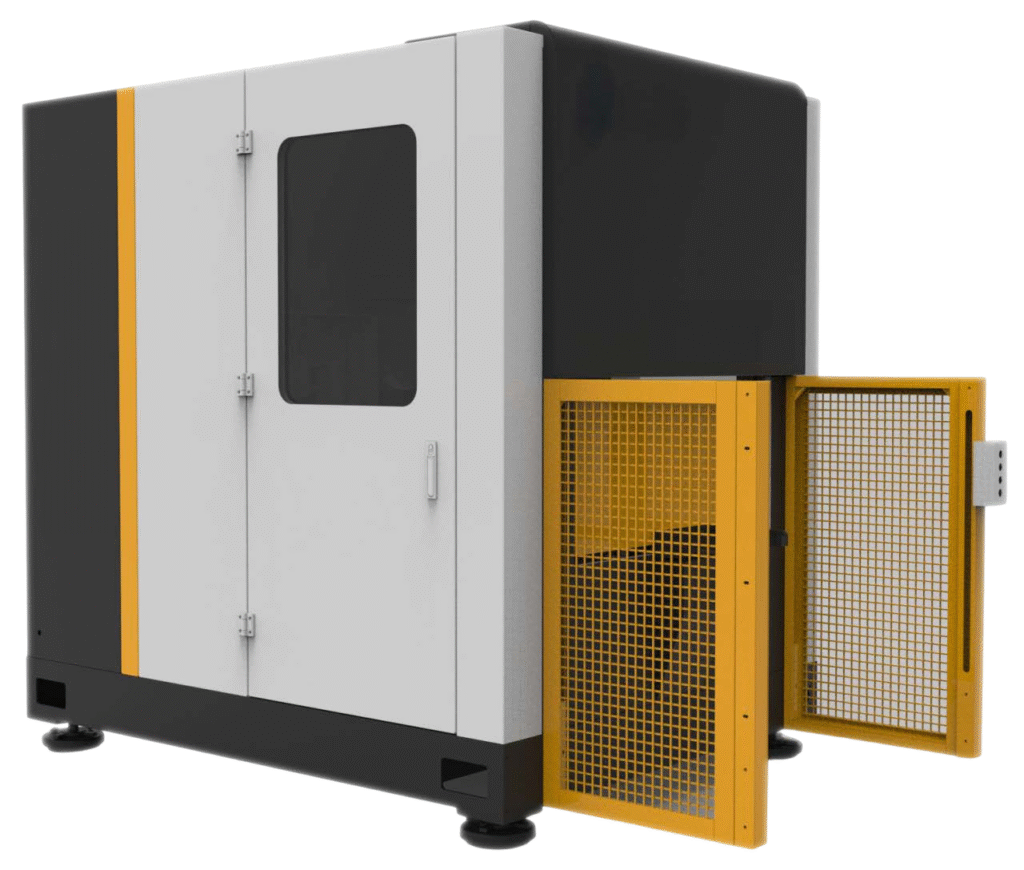

K-S30
|
K-S120
|
K-MAC300
|
K-MAC200
|
|---|---|---|---|---|---|---|
|
Machine size
|
2400mm*1700mm*2600mm
|
3200mm*2000mm*2500mm
|
||||
|
Max processing size
|
φ560mm*H300mm
|
|||||
|
Max load bearing
|
220kg or higher (including tooling)
|
|||||
|
Tool shaft number
|
2
|
|||||
|
NC number
|
As configured
|
|||||
|
Supply voltage
|
Ac380±10% 50Hz
|
|||||
|
Ambient temperature
|
-10-45℃
|
|||||
|
Total power
|
25kw
|
|||||
|
Main grinding head power
|
7.5kw
|
|||||
|
Auxiliary grinding head power
|
4kw
|
|||||
|
Deviation range of grinding head
|
|
|||||
|
Single/double station
|
Single station
|
|||||
|
Max tilt angle
|
-45-225°
|
