K-S30 Fully Automatic Grinding Machine
K-S30 Fully Automatic Grinding Machine

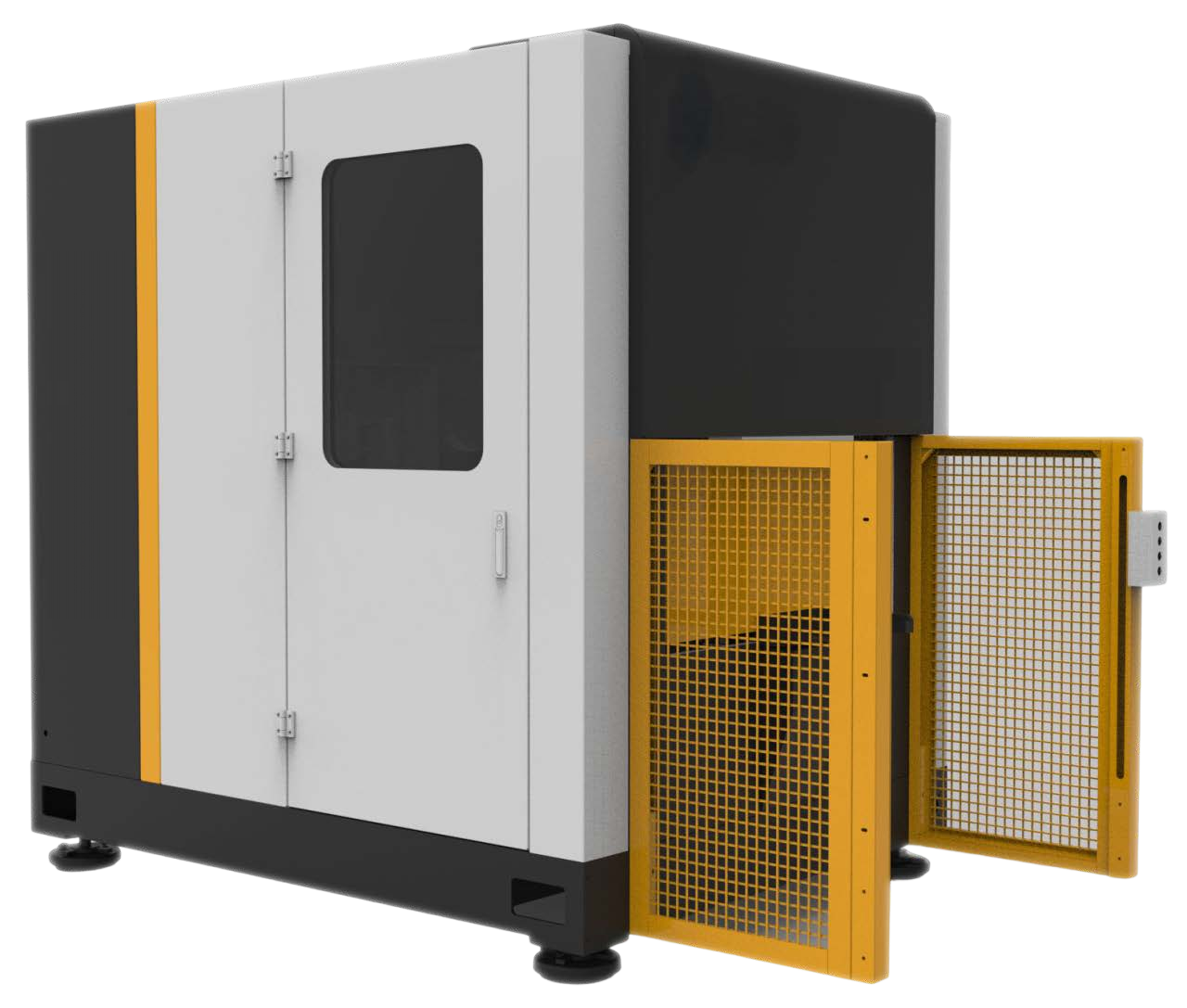

K-S30 fully automatic grinding machine is a standard product developed independently by our company for our customers. It adopts a robot like architecture and 9-axis 5-linkage, suitable for grinding and cutting small-sized casting products weighing 0-30kg (including tooling). The equipment combines flexibility and rigidity, and can flexibly polish various complex shaped castings. It comes standard with dual workstations, which can simultaneously polish different products, saving loading and unloading cycles and facilitating automated assembly.
|
Model
|
K-MAC200
|
K-S50
|
K-S30
|

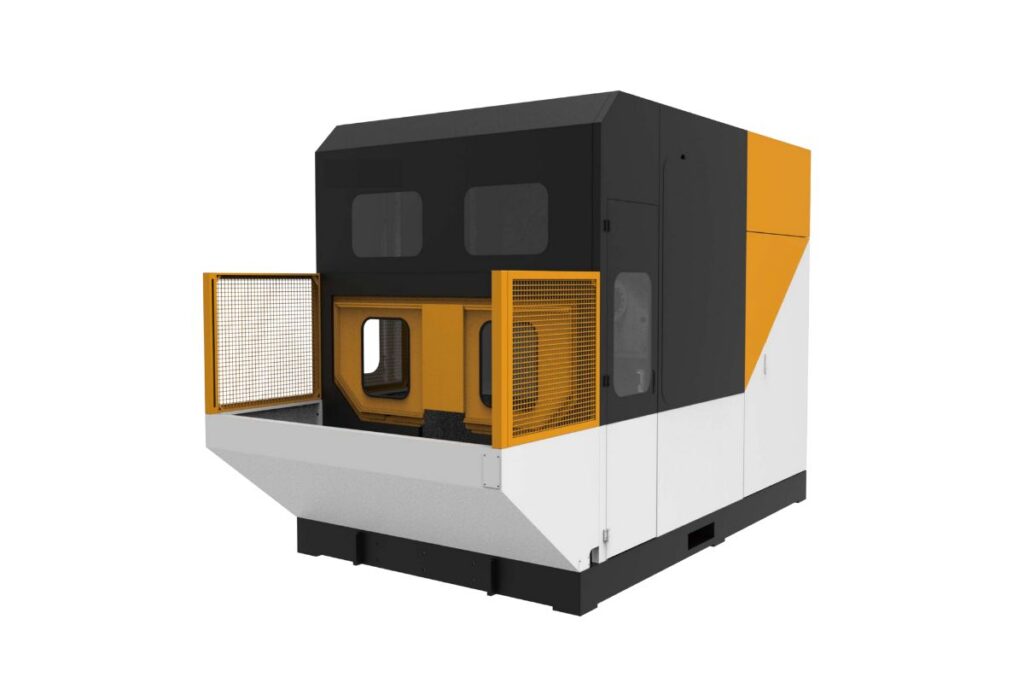

K-S120
|
K-MAC300
|
|---|---|---|---|---|---|
|
Machine size
|
2400mm*1700mm*2600mm
|
3200mm*2000mm*2500mm
|
2500*1500*2000mm
|
4000mm*2200mm*3050mm
|
5100mm*2400mm*2600mm
|
|
Max processing size
|
φ560mm*H300mm
|
φ400*350mm
|
φ400*350mm
|
φ900mm*H500mm&L1200*W300*H500
|
φ1000mm*H600mm
|
|
Max load bearing
|
220kg or higher (including tooling)
|
50kg (including tooling)
|
30kg (including tooling)
|
120kg(Tooling included)
|
300kg(Tooling included)
|
|
Tool shaft number
|
2
|
2
|
2
|
3
|
|
|
NC number
|
As configured
|
6
|
6
|
8
|
8
|
|
Supply voltage
|
Ac380±10% 50Hz
|
Ac380±10% 50Hz
|
Ac380±10% 50Hz
|
Ac380±10% 50Hz
|
Ac380±10% 50Hz
|
|
Ambient temperature
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
|
Total power
|
25kw
|
25kw
|
20kw
|
40kw
|
40kw
|
|
Main grinding head power
|
7.5kw
|
11kw
|
11kw
|
11kw
|
11kw
|
|
Auxiliary grinding head power
|
4kw
|
4kw
|
4kw
|
4kw
|
4kw*2
|
|
Deviation range of grinding head
|
|
-30-90°
|
-30-90°
|
-95°
|
-180-180°
|
|
Single/double station
|
Single station
|
Double station
|
Double station
|
Double station
|
Double station
|
|
Max tilt angle
|
-45-225°
|
|
|
|
|
