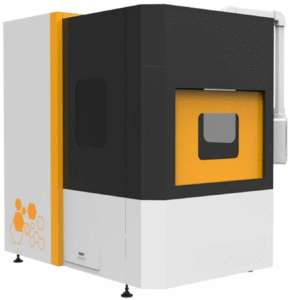

K -WOK
K -WOK
Floating deburring High degree of freedom High secure Efficient and stable K -WOK model is specially designed for deburring die-cast aluminum products. It adopts dual spindle (rigid spindle + flexible spindle) for efficient and stable grinding operation. The machine can be adapted to spindle fixing and product fixing, which can achieve high completion rate deburring operation of different products
|
Model
|
K -WOK
|
|---|---|
|
Machine size
|
2300mm*1720mm*2570mm
|
|
Machine stroke
|
|
|
Max processing size
|
φ1000mm*H800mm
|
|
Machine weight
|
|
|
Max load bearing
|
100kg(Tooling included)
|
|
Tool shaft number
|
2
|
|
NC number
|
7（Includes a 6-axis robot）
|
|
Supply voltage
|
Ac380±10% 50Hz
|
|
Ambient temperature
|
-10-45℃
|
|
Total power
|
5kw
|
|
Rated power of rigid spindle
|
2.2kw
|
|
Maximum speed of rigid spindle
|
24000r/min
|
|
Maximum speed of rigid spindle
|
1.2kw
|
|
Maximum speed of flexible spindle
|
20000r/min
|
