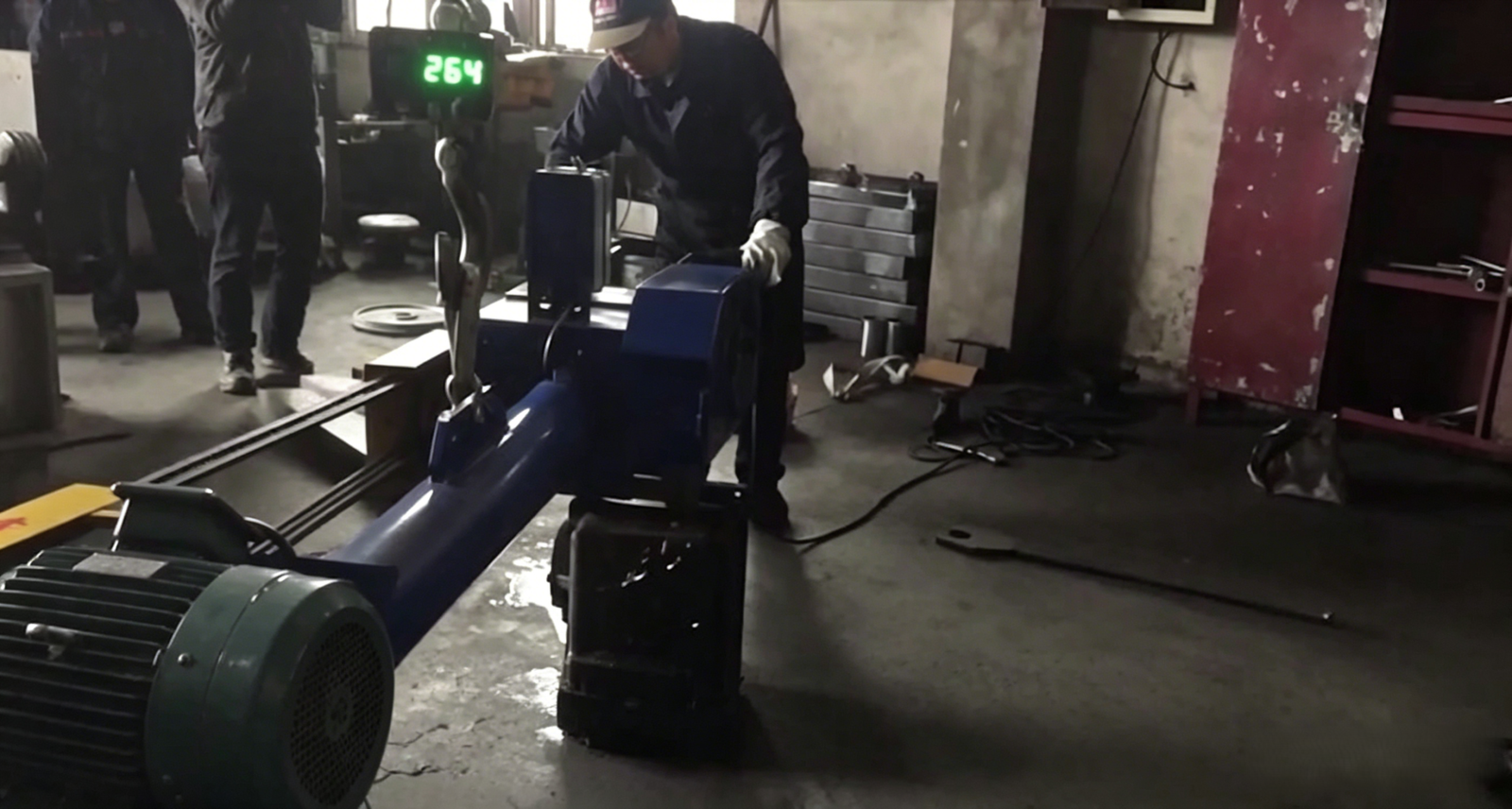

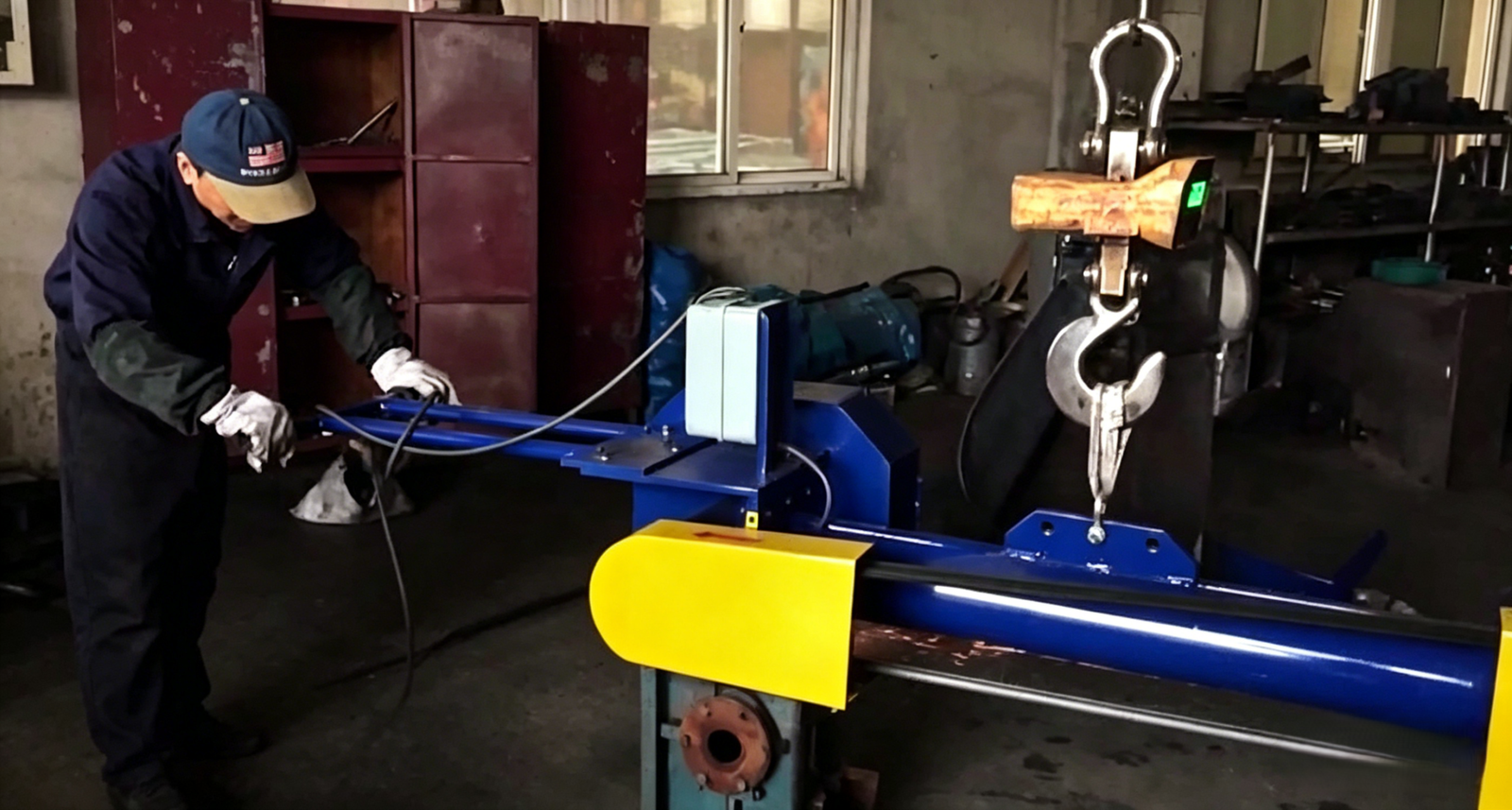

DRATEC hanging high speed grinder specially designed for efficient cleaning of large fixed workpieces, its unique suspension structure makes operation flexible and labor-saving, and production efficiency can be increased by 5 to 9 times compared to traditional handheld tools. It is the ultimate solution for handling heavy-duty castings and forging sprues.
Superior Productivity:
Operates at a peripheral speed of
80 m/s, significantly exceeding
the conventional range of 30-45
m/s. This high-speed operation,
combined with diamond wheels,
enables superior material removal
rates and improve work efficiency
Proven Reliability:
Consistent, high-quality results for cast iron applications.
Long service life:

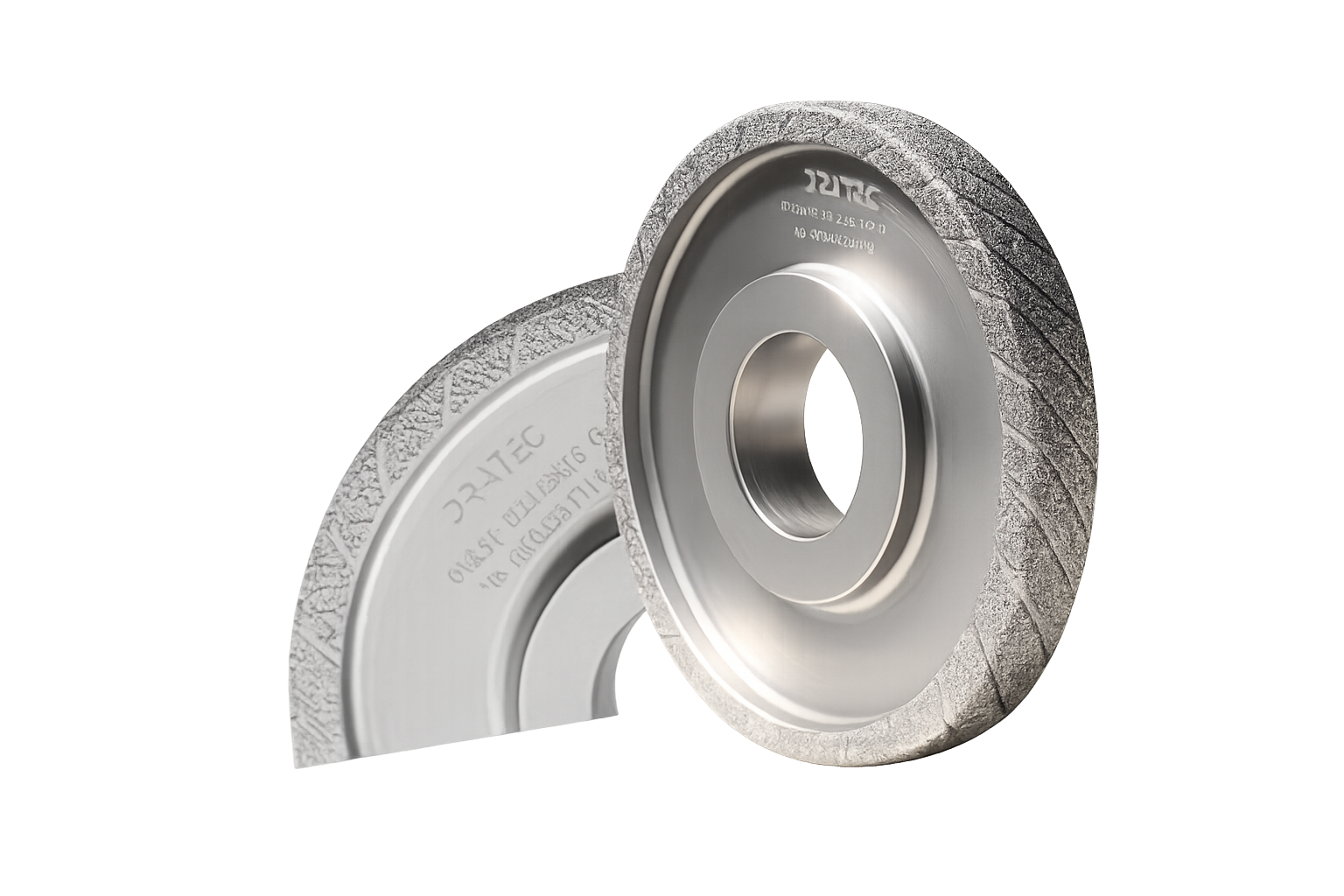

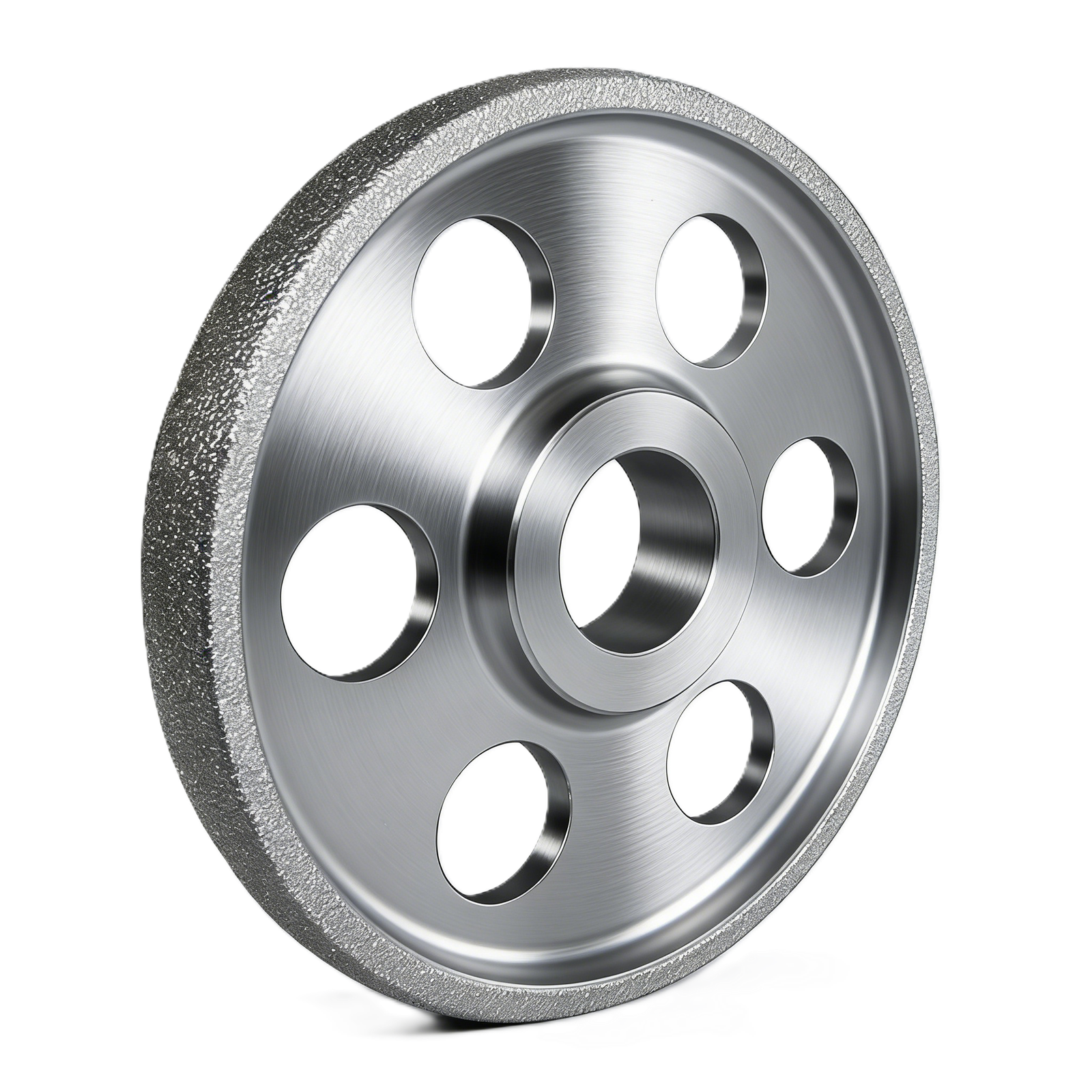

Equipped with ultra hard diamond grinding
wheels, Diamond grinding wheels wear
extremely slowly and have a very long
service life. When grinding hard materials,
its lifespan is tens or even hundreds of times
that of ordinary grinding wheels (such as
corundum and silicon carbide grinding
wheels).
Clean Operation:
No smoke or dust
emission, good for workers and
adaptablework rest,whichboostwork
efficiency and secure long-term
employment and reduce turnover，
Integrateddust collection that pays for
itself.
Customized Solutions:
We provide custom-made solutions for
both machinery and abrasive tools,
including diamond grinding wheels,
cuttingdiscs,grindingheads,coredrill
bits,and more.Our engineering team
partners with you to address your
specific application challenges..
| Model No. | D-MX3140 |
| Power (kW) | 5.5 |
| Voltage | 440V/380V/220V |
| Linear Velocity (m/s) | 80 |
| Size(mm) | 2500*600*800 |
| Match Grinding Wheel (mm) | DRMLS/DRMLSX-400*20/25/30/40/50*75 |
|
Customized Specification: Grinding machine with various outer structures and the grinding wheels to be equipped with can be designed and manufactured according to the requirement of different shapes of cast iron. |
|
High-speed grinder, suitable for grinding and cutting cast iron, Install diamond ultrahard grinding wheels to grind the outer surface of big size cast iron.
DRATEC series products hold multiple national invention patents and are certified under the ISO9001:2015 International Quality Management System, as well as MPA and CE safety standards. Renowned for being efficient, stable, cost-effective, safe, and environmentally friendly, they are widely applicable for cutting, rough grinding, semi-precision grinding, and precision grinding of materials such as cast iron, stone, ceramics, magnetic materials, quartz, and glass. They are also well-suited for sharpening and finishing metal cutting tools, and for the ultra-precision machining of materials like sapphire, silicon (Si), and silicon carbide (SiC).
With DRATEC, the optimal solution is specifically for you. Stop waiting—upgrade to unparalleled performance.
