DRATEC High-speed grinder, engineered for heavy-duty applications, these grinders offer exceptional stability and support, which are critical for precision grinding in industrial settings like foundries and metalworking shops. suitable for grinding & cutting cast iron.
Redefine Foundry Grinding with a Complete Diamond System
Engineered for Unmatched Productivity & Uptime
Our high-performance rough grinding machines are specifically engineered to unlock the full potential of our brazed diamond wheels. When paired as a set, they are built to dominate your most challenging applications. Larger wheel surface and curvature double the polishing efficiency.
Extreme 80 m/s Speed: Maximizes the efficiency and lifespan of diamond wheels, far surpassing conventional options.
Robust Steel Construction: Ensures vibration-free stability under maximum load.
Maintenance-Free Spindle System: Features oversized bearings and drive for relentless operation.
| Model No. | D-MD3040-XT |
| Power (kW) | 7.5 |
| Voltage | 440V/380V/220V |
| Linear Velocity (m/s) | 80 |
| Match Grinding Wheel (mm) | DRMLSM-420*55*75 C+/DRMLSM-420*55*75 A+ |
|
Customized Specification: Grinding machine with various outer structures and grinding wheels can be designed and manufactured according to the requirements of different cast iron shapes. |
|
Stability: DRATEC pedestal grinders feature a heavily reinforced base and frame, limiting machine bounce to within 0.02mm during heavy-duty operations to ensure grinding precision.

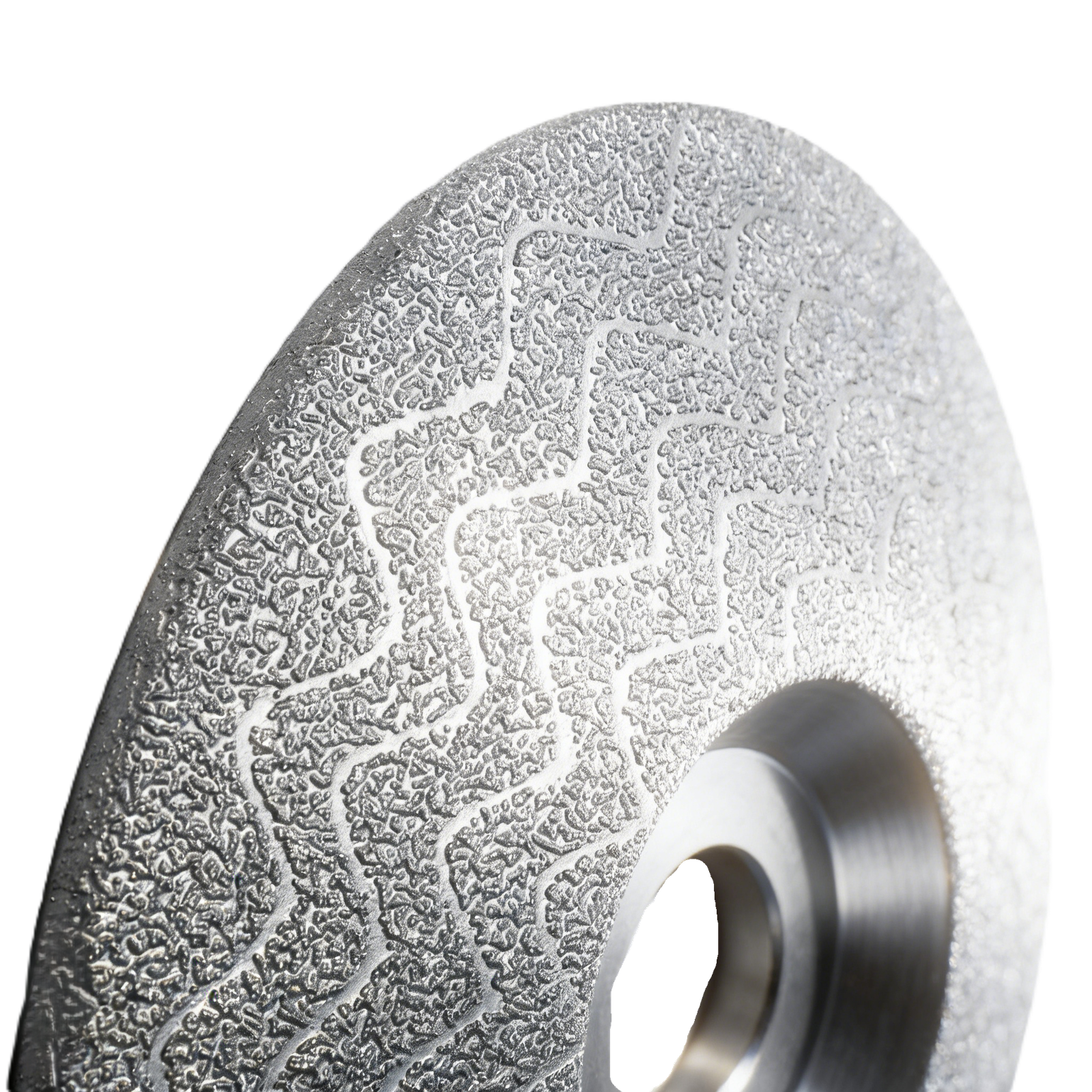

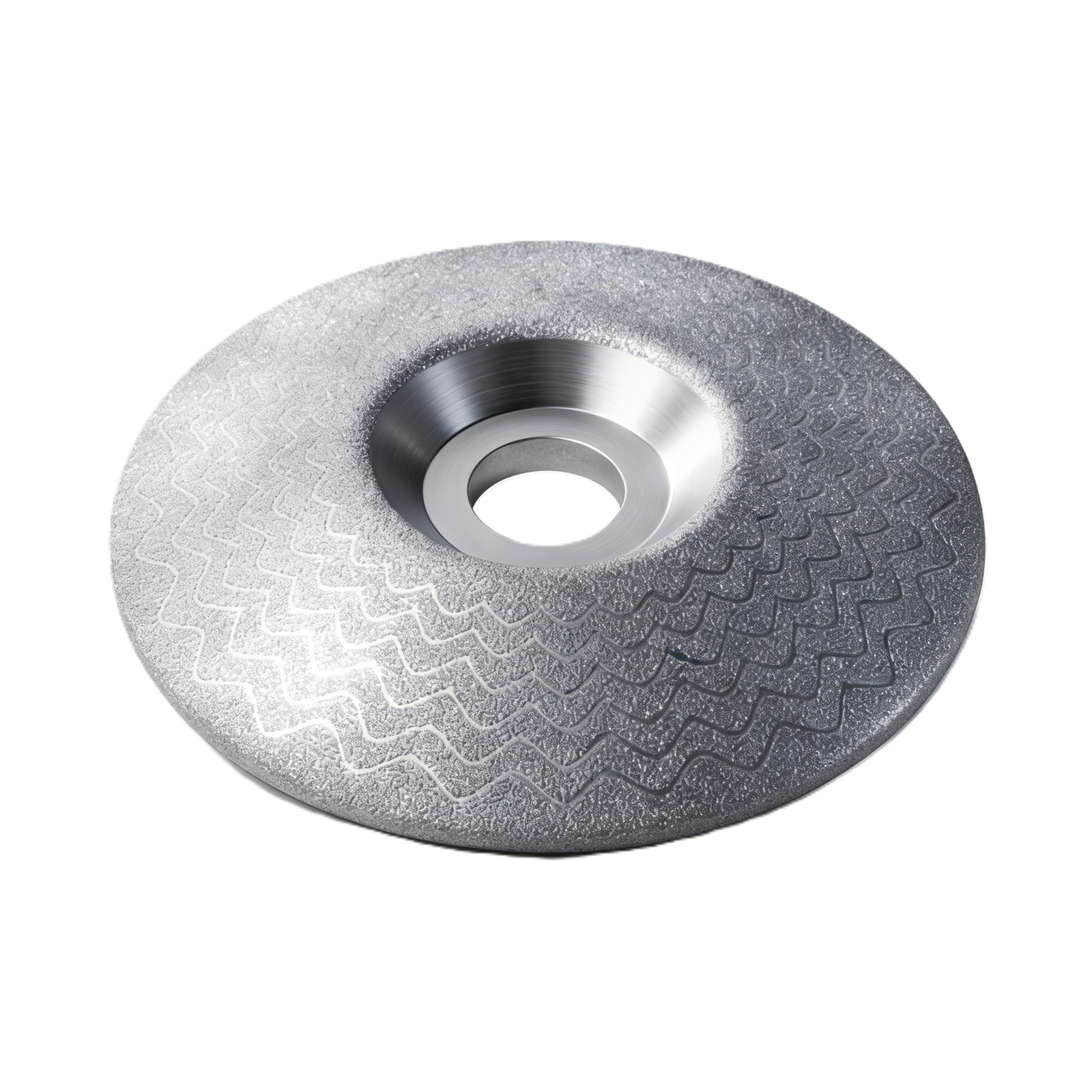

Diamond Grinding Wheels: engineered to handle the toughest materials, including cast iron, steel, and alloy castings. With advanced abrasives and robust construction
High Speed Reduce processing time and improve productivity: Operating at a peripheral speed of 80m/s, the grinders enable high-efficiency material removal while maintaining consistent finish quality on cast iron components.
Smooth Operation: Advanced dynamic balancing and vibration-damping design ensure minimal runout and smooth operation, contributing to improved surface quality and dimensional accuracy.
ROI on Dust Collection: Based on operational data, the recovered iron dust typically offsets the full cost of the dust collection system within a 4-to-5-month period, making it both an environmental and economic asset.
Reliability: Engineered for continuous use in demanding environments, DRATEC grinders deliver repeatable results and extended operational life with minimal maintenance requirements.
Dust Collection System: An integrated high-efficiency dust extraction system captures over 95% of airborne cast iron particles, improving air quality and reducing exposure hazards. The collected iron dust can be recycled within the foundry production chain, providing tangible material recovery value.
DRATEC series products hold multiple national invention patents and are certified under the ISO9001:2015 International Quality Management System, as well as MPA and CE safety standards. Renowned for being efficient, stable, cost-effective, safe, and environmentally friendly, they are widely applicable for cutting, rough grinding, semi-precision grinding, and precision grinding of materials such as cast iron, stone, ceramics, magnetic materials, quartz, and glass. They are also well-suited for sharpening and finishing metal cutting tools, and for the ultra-precision machining of materials like sapphire, silicon (Si), and silicon carbide (SiC).
With DRATEC, the optimal solution is specifically for you. Stop waiting—upgrade to unparalleled performance.
